Chip Solution

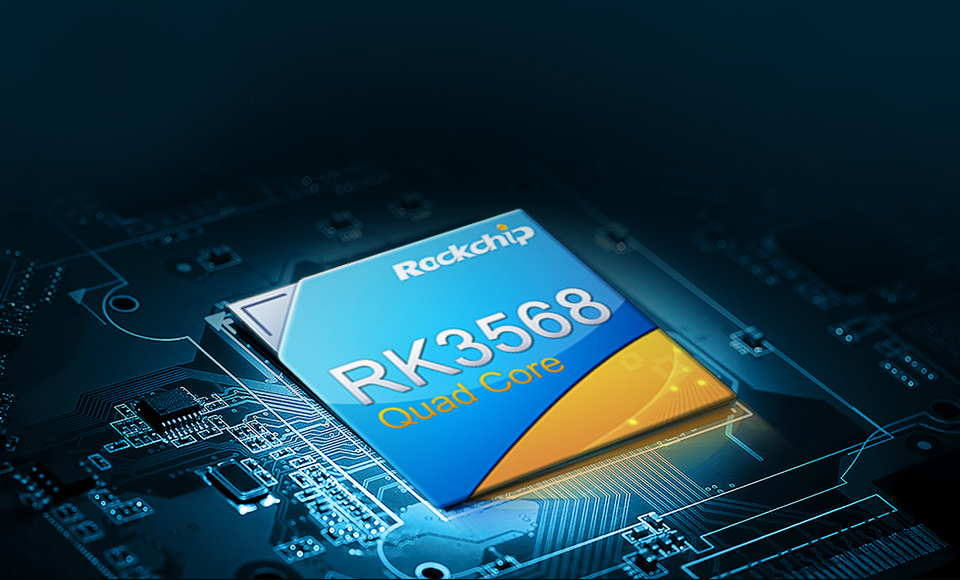

Rockchip RK3568 chip
Multi-Function

Strong performance

Support Ethernet/WIFI/BT
Display

4K display
Operating System

Support Android 11 system
Operating Temperature

-10℃ to 60℃

24/7 Working
OEM/ODM

Custom boot logo

Application Scenarios

Edge Computing Mini PC, also known as an edge computing gateway, is an industrial intelligent gateway capable of performing local computing, message communication, and data caching. It enables device-level local interaction and data processing/analysis without requiring internet connectivity.

Industrial Robot

Edge Computing

Smart Medical

Security Monitoring

Smart Transportation

Cloud Computing

AIBOX-3568D

Rockchip RK3568 Quad-core Cortex-A55, 2.0GHz

DDR-4G EMMC-32G

Android System Customization

The system runs Android 12, which provides API files.

Perfectly support the development of upper-layer application.

4K Display

4K@60Hz HD OUT

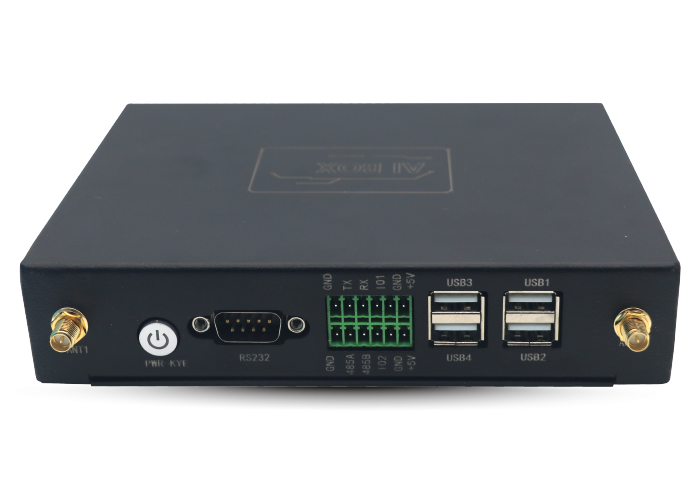

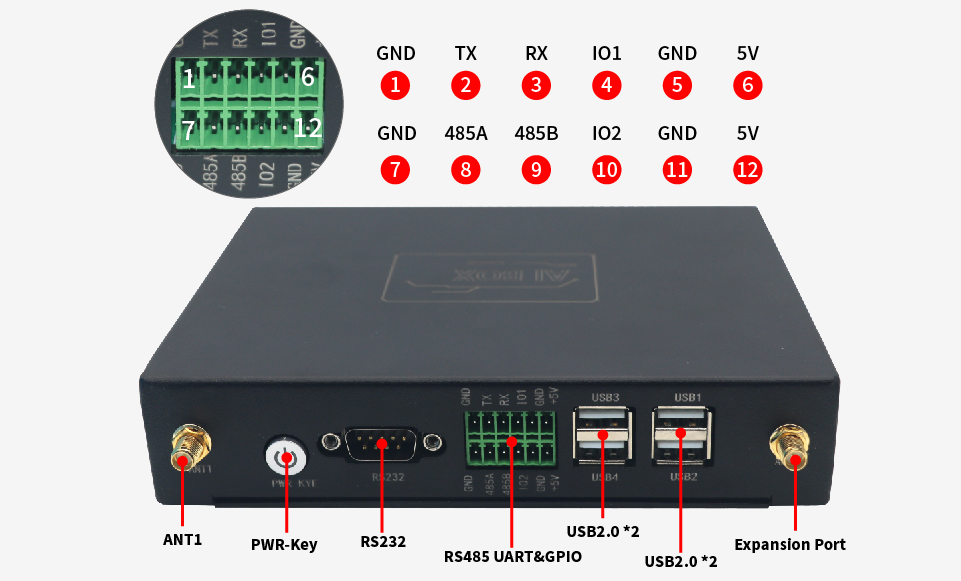

Rich Interface

1*100M/10M adaptive Ethernet

1*DC IN

2*Antenna

6*USB 2.0 HOST, 1*USB 3.0 HOST, 1*Type-C

1*RS232

RS485, GPIO

High Compatibility

Support secondary development

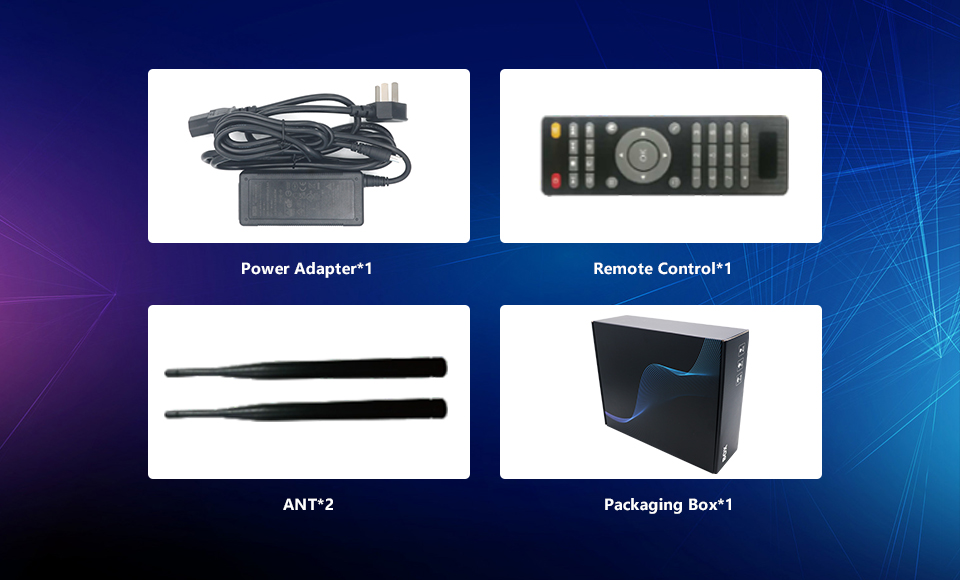

Accessories List

1*Power Adapter(DC+12V/2A）, 1*Remote Control, 2*Antenna, 1*Packing box

Product Parameters

CPU

Quad-cre Cortex-A55

2.0GHz
GPU

Mali-G52-2EE
Storage

DDR 4G
Memory

eMMC 32G
Peripheral interface

1*DC+12V

2*Antenna

6*USB 2.0 HOST, 1*USB 3.0 HOST, 1*Type-C

1*RS232

1*RJ45

1*SIM slot

GPIO

RS485
