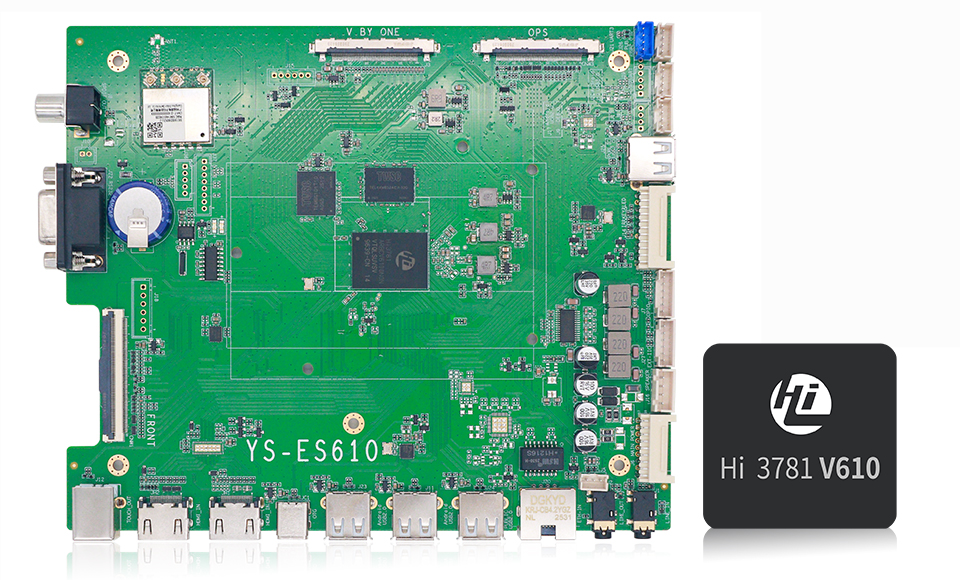

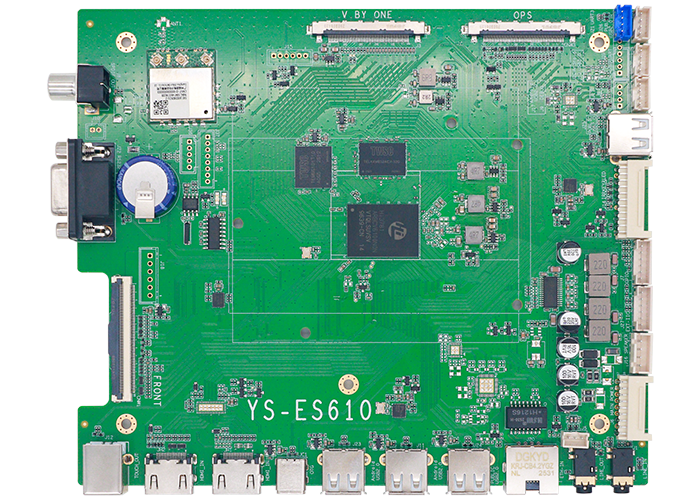

YS-ES610

Motherboard for IFPD

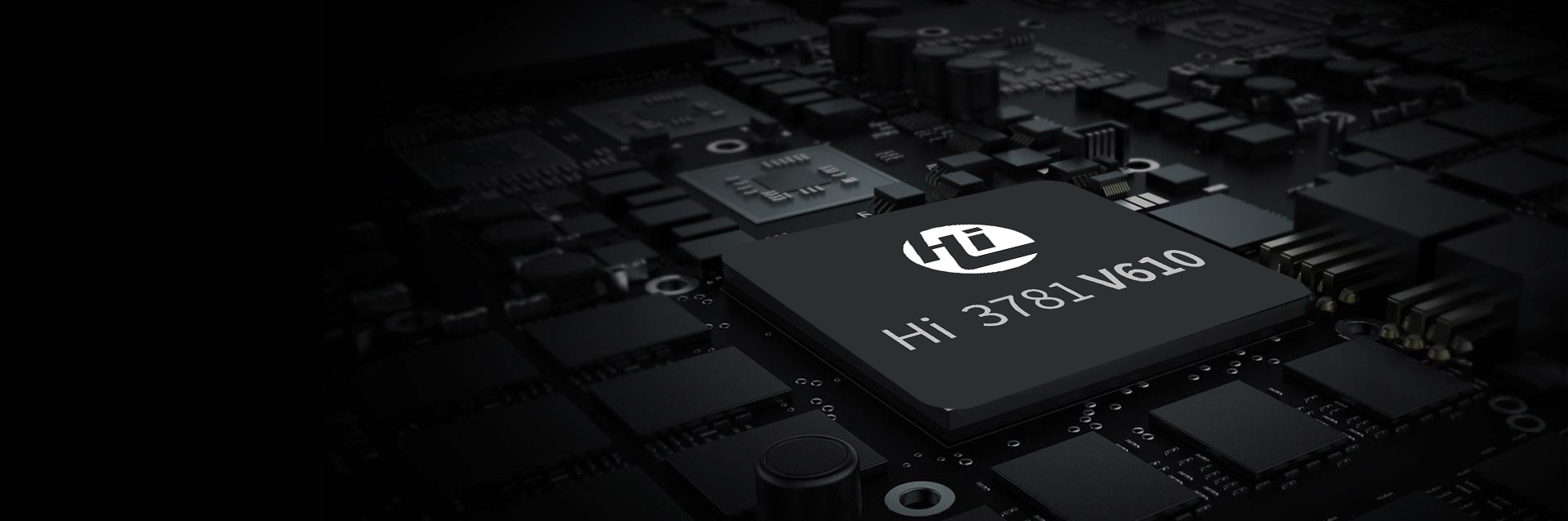

Chip: HiSilicon Hi3781V610

System: Support Android 15 OS

Function: Support 4K display

Interface: VBYONE / MIC / USB / SPK / OPS / I2C / LINE IN, etc

High Performance Processor

Rich Interface

Support Firmware/Startup Logo Customization

The system runs Android 15 system, provides API document

Support the development of upper-layer application

4K Display

Support VBYONE 4K@60Hz resolution

Support HD Input 4K@60Hz

Support 4G LTE

Support 10M / 100Mbps auto-negotiation Ethernet

Support dual-band WIFI 6

Support 4G LTE

Support BT 5.4

Application scenarios

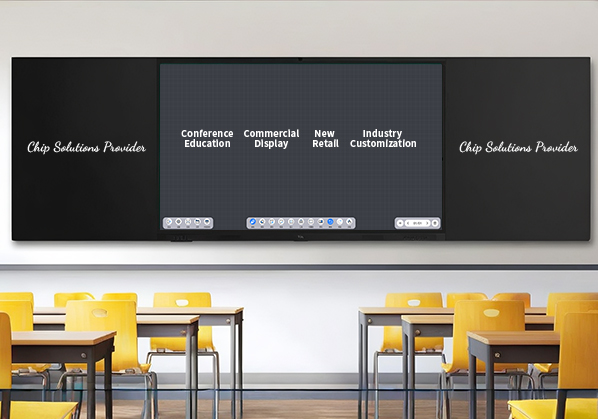

Interactive Display

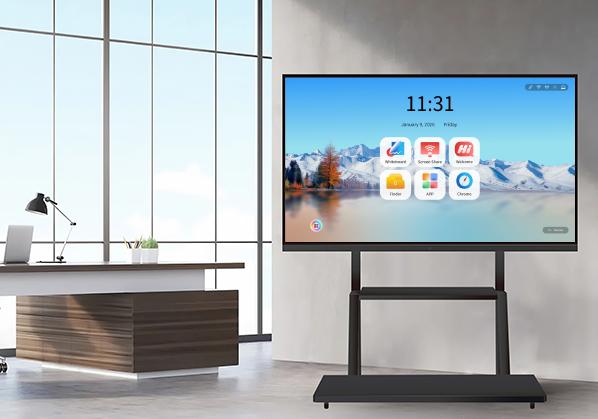

Smart Tablet

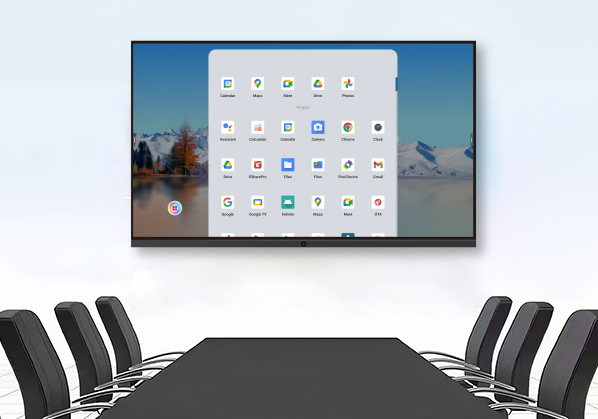

Conference Display

YS-ES610 Parameters

CPU

Octa-core Cortex-A55

Main frequency up to 1.45GHz
GPU

Multi-core GPU

Support OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.0, Vulkan 1.1
CODEC

Support HEVC (H.265), H.264, MVC, MPEG 1 / 2 / 4, Divx, AVS, VC-1 video decoding

Support VP9 10bit, FHD@60fps video decoding
Display

Support VBYONE, 4K@60Hz display

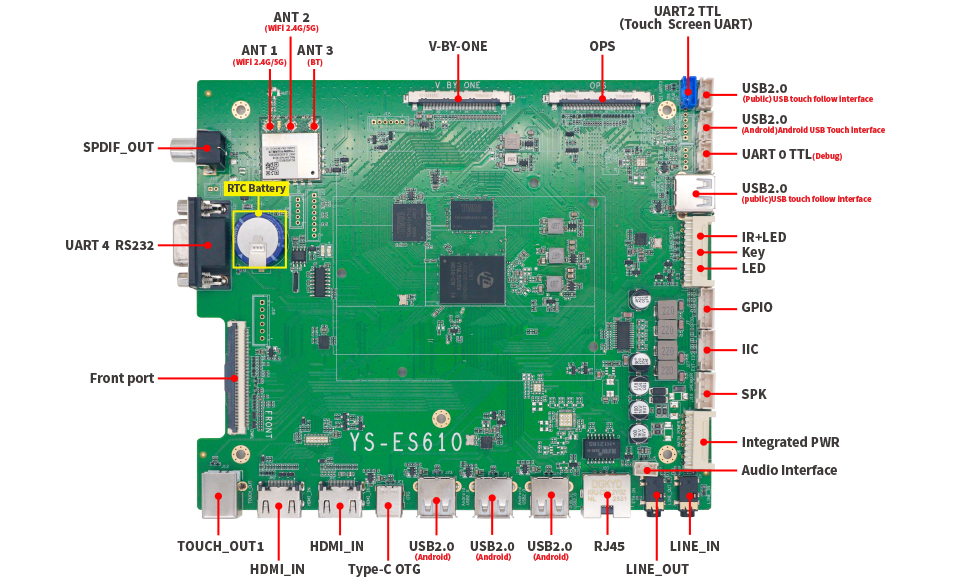

Peripheral interface

Support 10M /100Mbps auto-negotiation Ethernet

Support WIFI 2.4GHz / 5GHz, BT 5.4

1 x OPS slot interface

8 x USB 2.0 (Choose two), 1 x Type-B OUT, 1 x Type-c OTG

1 x TTL, 1 x Touch Switching, 1 x TTL Debug /RS232

1 x I2C interface

1 x Front-panel header (Supports additional USB and HDMI input)

2 x HD Input interface, up to 4K@60Hz

1 x Remote control interface

8 x ADC keys

4 x Speaker interface, up to four 8Ω15W dual-channel speaker output

1 x LINE IN, 1 x LINE OUT

Customized service

FAQ

Production Capacity

500000PCS/Year
Technical Support

FAE 1 to 1 technical support
OEM/ODM

Firmware customization

Startup logo customization
Warranty Service

3 years warranty 7 days maintenance
Defect Rate 5‰

Guaranteed one-year defect rate

5‰ (after installation)
High-quality PCB

All PCB of the motherboard

Cooperate with listed board factory
