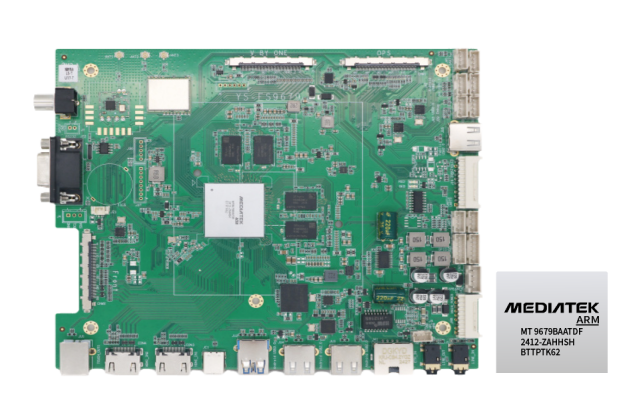

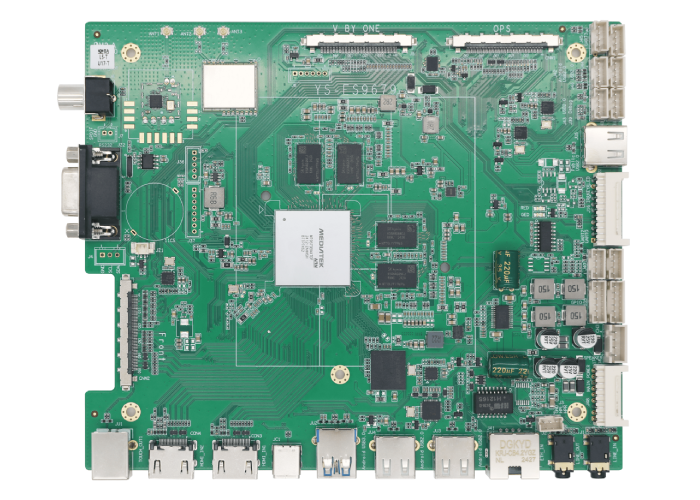

YS-ES9679 Motherboards

All-in-One Conference Motherboard

Chip: MTK MT9679

System: Support Android 14 OS

Function: Support 4K display, support 4G LTE

Interface: VBYONE/MIC/USB/SPK/OPS/I2C/LINE, etc

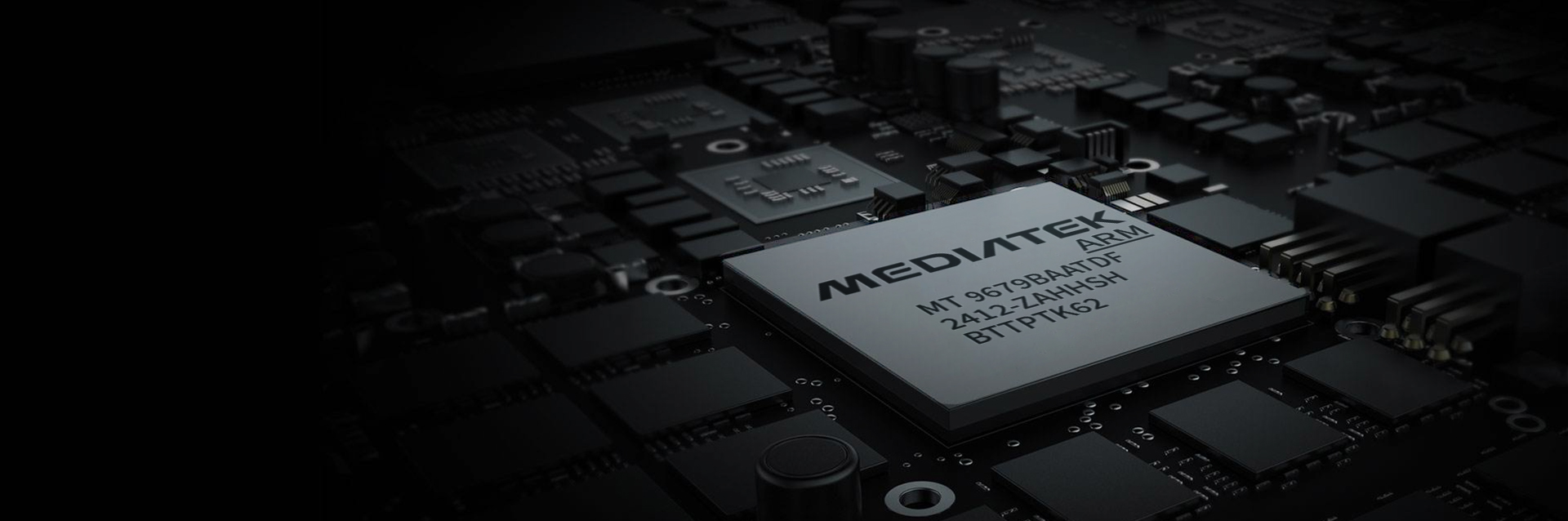

High Performance Processor

Rich Interface

Support Firmware/Startup Logo Customization

The system runs Android 14 system, provides API document

Support the development of upper-layer application

4K Display

Support VBYONE 4K@60HZ resolution

Support OPS

Support 4G LTE

Support 1000M/100M/10M adaptive Ethernet

Support WIFI2.4GHz/5.0Ghz

Support 4G LTE

Support BT5.0

Application scenarios

Interactive Display

Smart Tablet

Conference Display

YS-ES9679 Parameters

CPU

4* CA73

Main frequency up to 1.92GHz
GPU

Mali G52-MC1
CODEC

Support 4K75,H.265/H265/AVS3/VVC/AV1/HEVC video decoding

Support MPEG2, MPEG2_HD, MPEG4, MPEG4_SD, MPEG4_HD, VC1, AVS, AVS2, VP8, HEVCVP9, H.264 video encoding
Display

Support VBYONE display

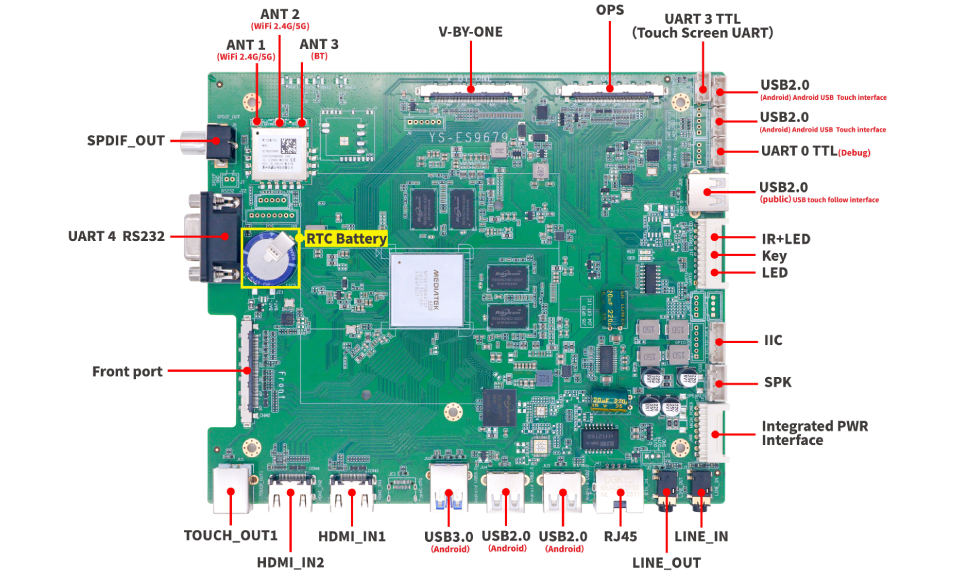

Peripheral interface

Support 100M/10M adaptive Ethernet

Support WIFI-2.4GHz/5GHz, BT-5.0

1*OPS interface

7*USB 2.0, 1*USB 3.0, 1 USB OTG

3*TTL(2*TTL, 1*Debug TTL)

1*I2C interface

1*Front port

1*VBONE interface, up to 4K 60HZ

1*Remote control interface

1*Red light

1*Green light

1*Speaker interface, up to one 8Ω 5W dual-channel speaker output

1*LINE IN, 1*LINE OUT

Customized service

FAQ

Production Capacity

500000PCS/Year
Technical Support

FAE 1 to 1 technical support
OEM/ODM

Firmware customization

Startup logo customization
Warranty Service

3 years warranty 7 days maintenance
Defect Rate 5‰

Guaranteed one-year defect rate

5‰ (after installation)
High-quality PCB

All PCB of the motherboard

Cooperate with listed board factory
