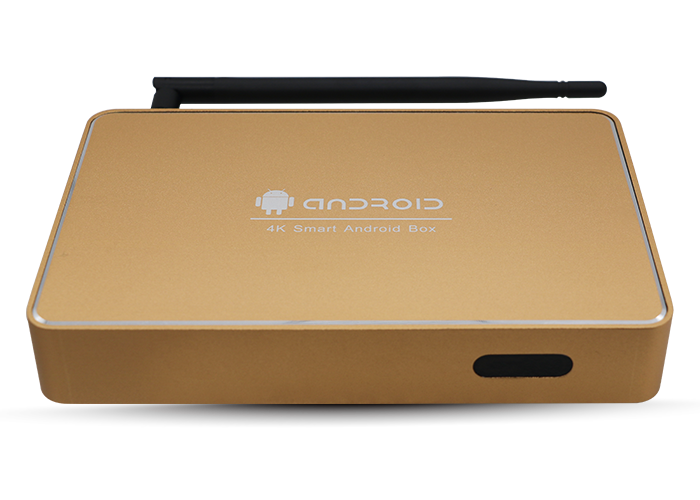

AIBox-A133B AI Box

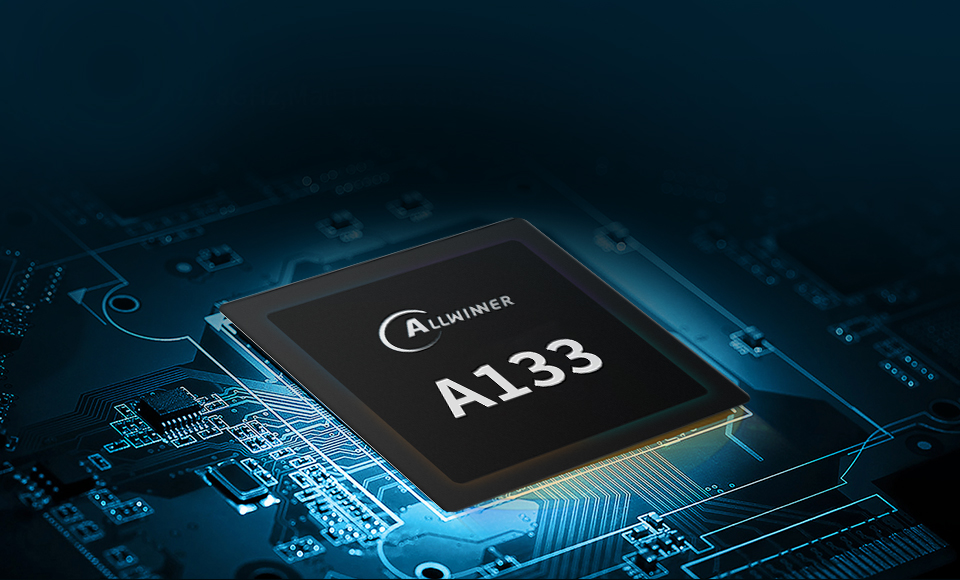

Chip Solution

Allwinner A133 chip
Multi-Function

Strong performance

Support Ethernet/WIFI/BT
Display

1080P display
Operating System

Support Android 10 system
OEM/ODM

Custom boot logo

Custom firmware
CMS software

Free digital signage software

Application Scenarios

This product has a wide range of application scenarios in the smart business display industry. Such as: digital signage, advertising machine, electronic class board, tablet, etc., which are perfectly suitable for Yisheng Technology ETV digital signage system.

Digital Signage

Automated Fare Collection Gate

Cashier

Smart Locker

Self-Service Kiosks

Digital Photo Frames

AIBox-A133A

Quad-core Cortex-A53, 1.5GHz

Android 10 system

DDR-1G EMMC-32G

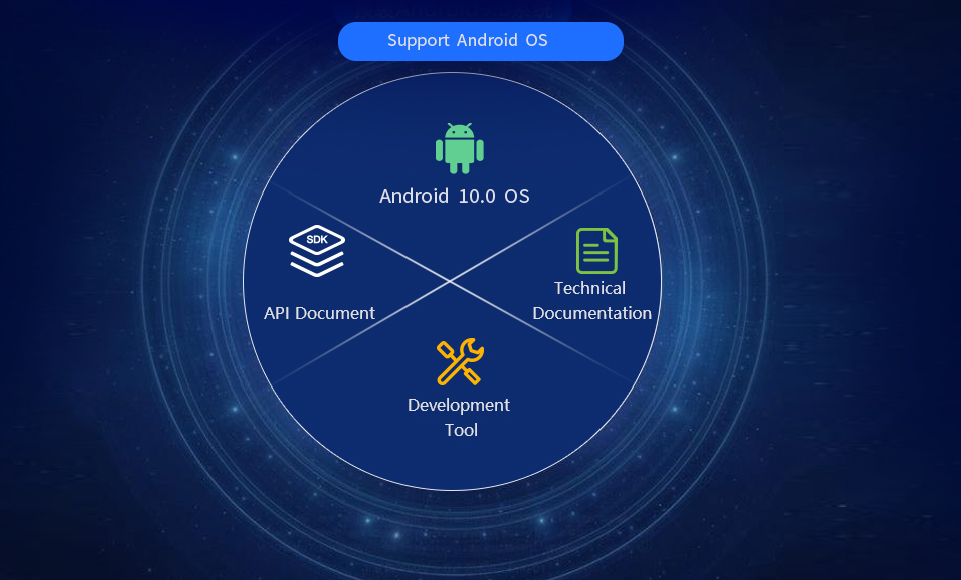

Support Android System Customization

The operating system is Android 10, which provides API files.

Perfectly support the development of upper-layer application.

1080P Display

1080P@60Hz

Support split screen, horizontal and vertical screen.

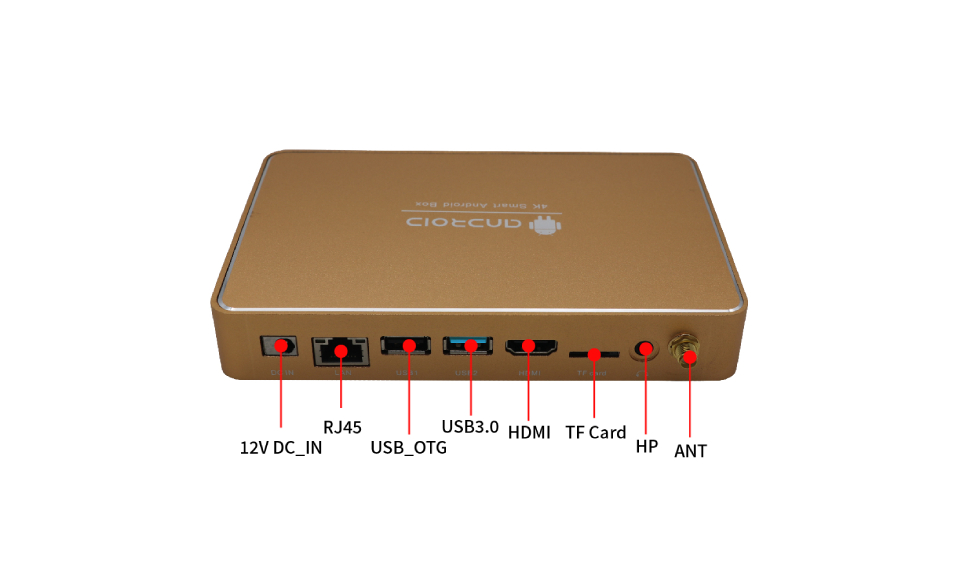

Rich Interface

Support 100M/10M adaptive Ethernet

Support WIFI-2.4G/BT5.4

1*USB 2.0 Host, 1*USB OTG

Support TF slot

CMS System

The device comes with ETV digital signage software, which is more convenient for users to publish information

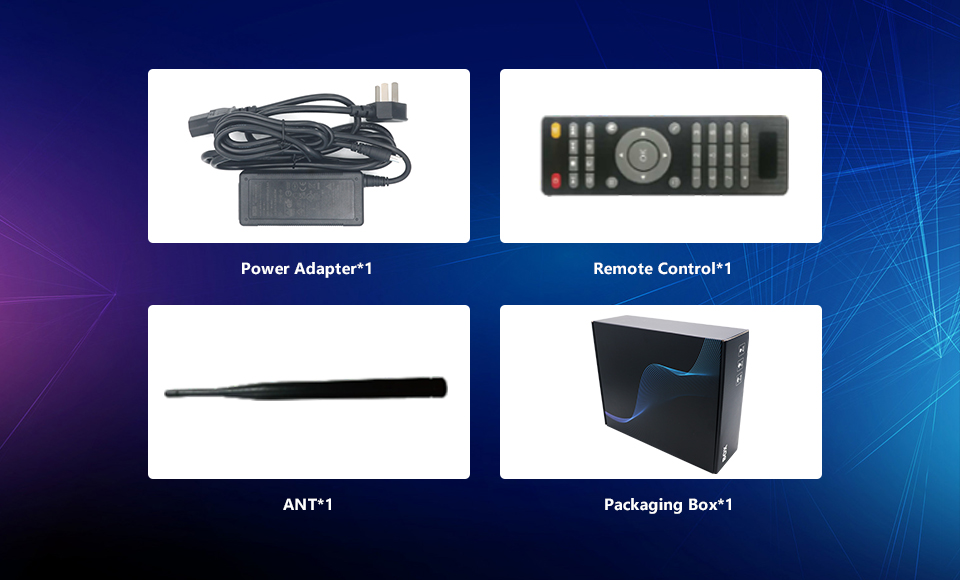

Accessories List

1*Power Adapter(DC+12V/2A), 1*Remote Control, 1*Antenna, 1*Packing box

Product Parameters

CPU

Quad-core Cortex-A53

Frequency up to 1.5GHz
GPU

IMG PowerVR GE8300
Storage

DDR 1G
Memory

eMMC 32G
Multimedia

4K@30fps H.265/VP9/H.264 video decoding

1080p@60fps H.264 video encoding
Peripheral interface

Support 100M/10M adaptive Ethernet

Support WIFI-2.4G/BT5.4

1*USB 2.0, 1*USB OTG

Support TF slot
