Rockchip RK3576 chip
Strong performance
Support Ethernet/WIFI/BT
4K display
Support Android 14 system
Custom boot logo
Custom firmware
Free digital signage software

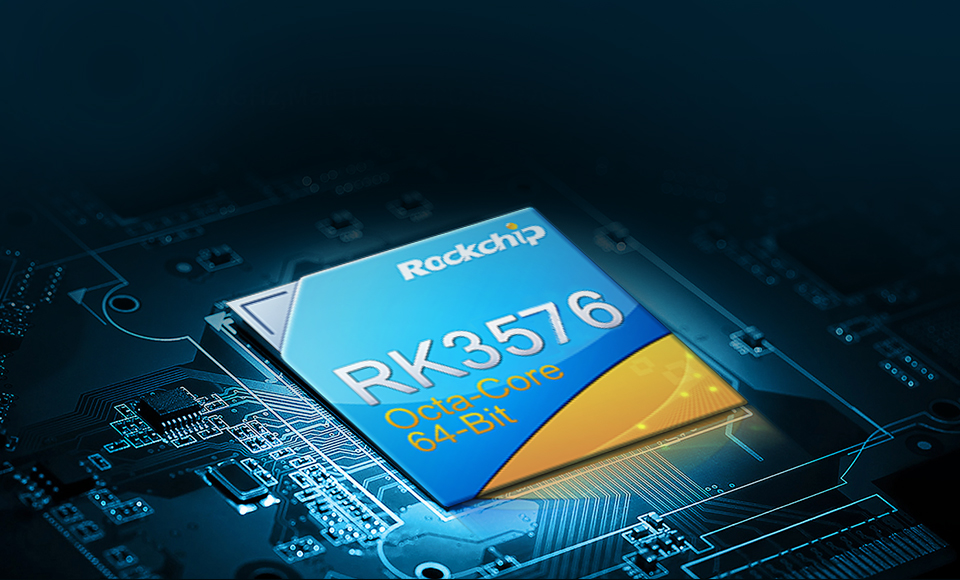

Rockchip RK3576 Quad-core Cortex-A53 + Quad-core Cortex-A72, 2.2GHz
Android 14 system
DDR-4G EMMC-32G

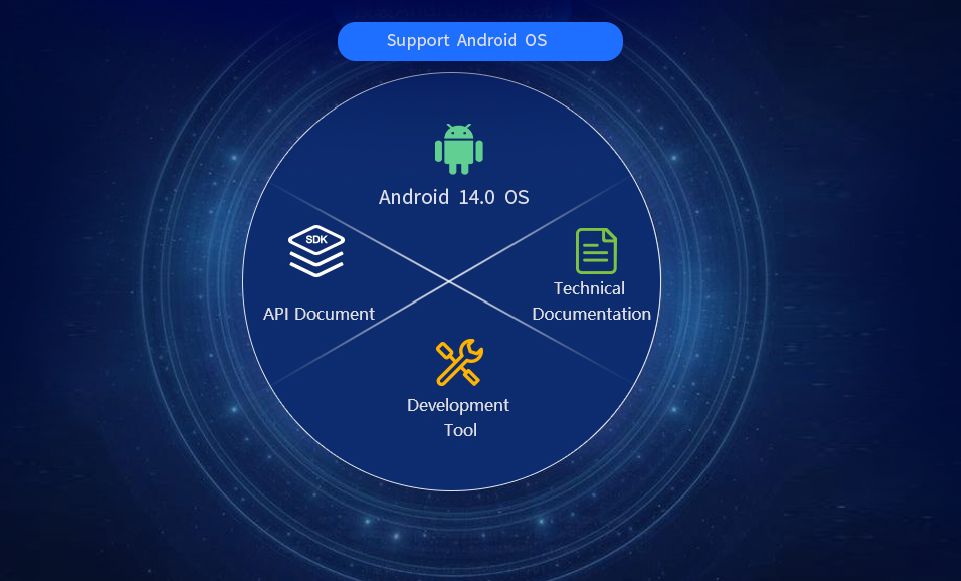

The system runs Android 14, which provides API files.
Perfectly support the development of upper-layer application.
4K@60HZ
Support split screen, horizontal and vertical screen.
Support 1000M/100M/10M adaptive Ethernet
Support dual-band WIFI6/BT5.3

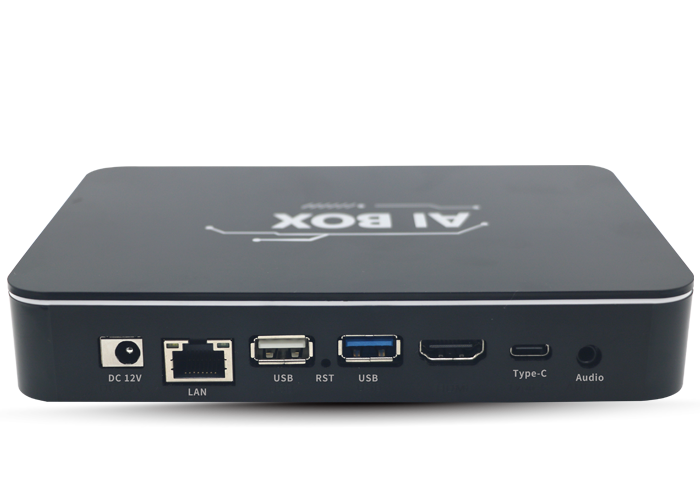

1*USB 3.0, 1*USB 2.0, 1*Type-C
Support Audio
The device comes with ETV digital signage software, which is more convenient for users to publish information
1*Power Adapter(DC+12V/2A）, 1*Remote Control, 1*Packing box
Quad-core Cortex-A53 + Quad-core Cortex-A72
Frequency up to 2.2GHz
Mali-G52 MC3@1GHz, support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1
DDR 4G
eMMC 32G
8K@30fps 4K120fps H.265/H.264/AV1/VP9/AVS2 video decoding
4K@60fps H.264/H.265 video encoding
Support 1000M/100M/10M adaptive Ethernet
Support WIFI-2.4G/5.0GHZ, BT5.3
1*USB 3.0, 2*USB 2.0, 1*Type-C
Support Audio
