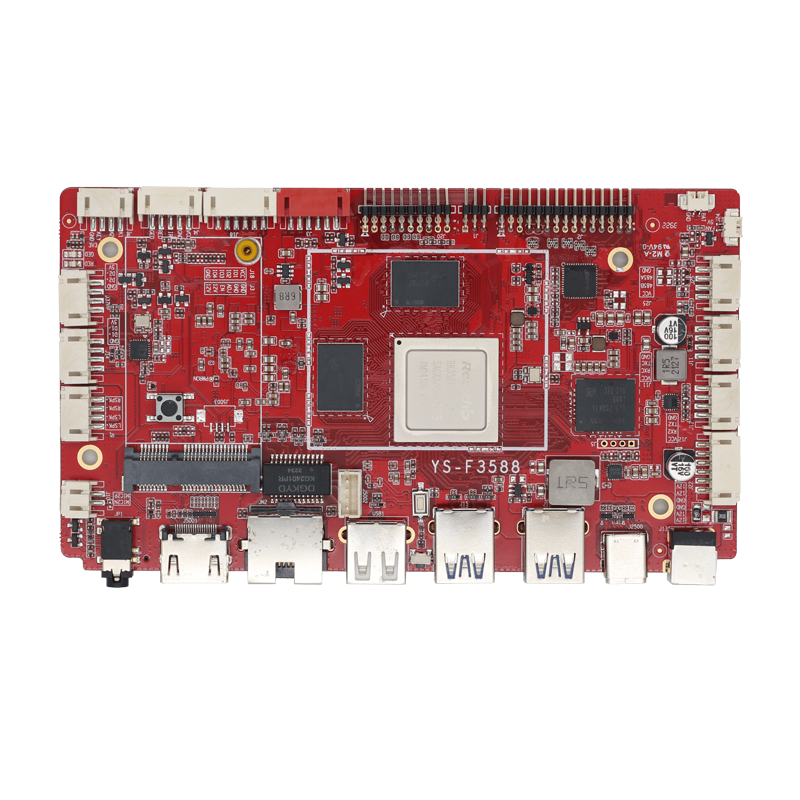

YS-F3588 Android 12 Board

Smart AIoT Motherboard

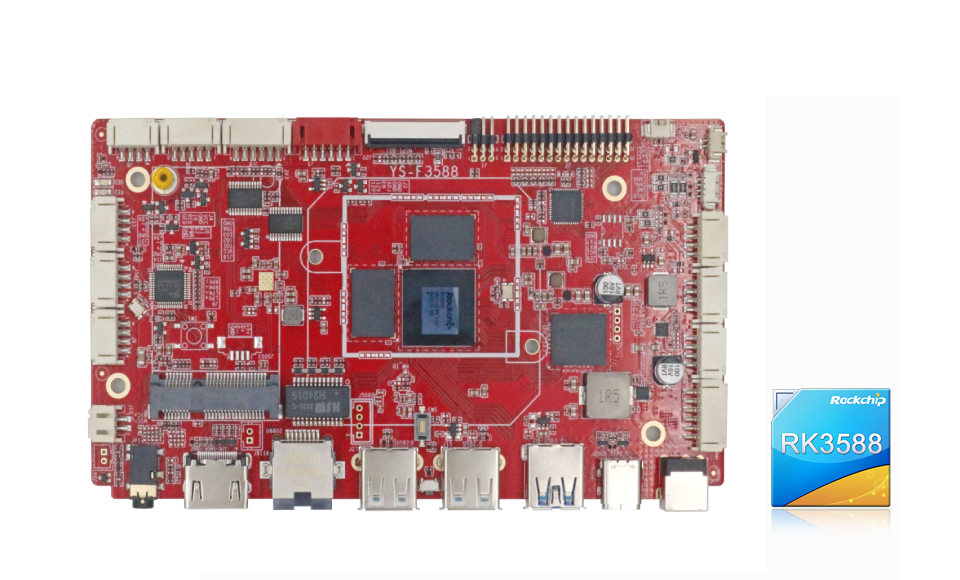

Chip: Rockchip RK3588

System: Support Android 12 OS

Function: Support 8K display, support 4G/5G LTE

Interface: LVDS/MIPI/MIC/USB/SPK/POE/CAN/MIPI CSI, etc

High Performance Processor

Rich Interface

Support Firmware/Startup Logo Customization

The system runs to Android 12, provides API document

Support the development of upper-layer application

4K Display

Support LVDS 1920X1080 resolution

Support MIPI 1200*1920 resolution

Support DP1.4 8K@30HZ resolution

Support 4G/5G LTE

Support 1000M/100M/10M adaptive Ethernet

Support WIFI2.4GHz/5.0GHz

Support 4G/5G LTE

Support dual-band WIFI6/BT5.0

Application scenarios

Digital signage

Self-service terminal

Smart tablet

Advertising machine

Digital Photo Frames

Cashier

YS-F3588 Parameters

CPU

Octa-core 64-bit Cortex-A76+Cortex-A55

Main frequency up to 2.4GHz
GPU

Mali-G610 MP4
NPU

Support 6Tops NPU
CODEC

Support H.265/H.264/AV1/VP9/AVS2 video decoding

Support H.264/H.265 video encoding
Display

Support LVDS, MIPI display
Peripheral interface

Support 1000M/100M/10M adaptive Ethernet

Support WIFI-2.4G/5G, BT-5.0

4G/5G module interface

3*USB 2.0, 2*USB 3.0, 1*USB Type-C

3*TTL（2*RS232 optional, 1*RS485 optional）

1*I2C interface

4*GPIO port

1*LVDS interface, up to 1920X1080

1*MIPI interface, up to 1200*1920

1*Remote control interface

1*Red light

1*Green light

Support speaker interface, up to one 8Ω 5W dual-channel speaker output

1* MIC interface

Customized service

FAQ

Production Capacity

500000PCS/Year
Technical Support

FAE 1 to 1 technical support
OEM/ODM

Firmware customization

Startup logo customization
Warranty Service

3 years warranty 7 days maintenance
Defect Rate 5‰

Guaranteed one-year defect rate

5‰ (after installation)
High-quality PCB

All PCB of the motherboard

Cooperate with listed board factory
