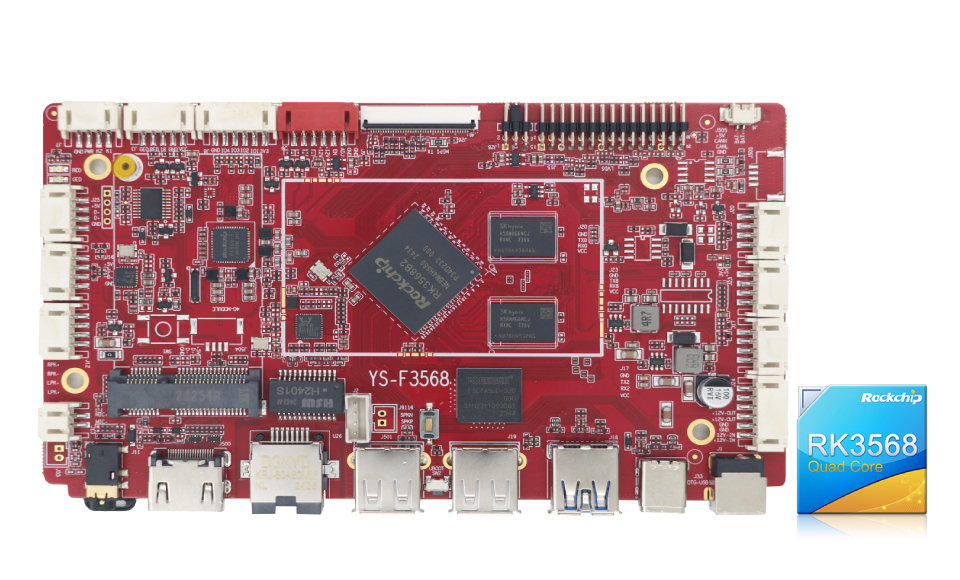

YS-F3568 Android 11 Board

Smart Commercial Motherboard

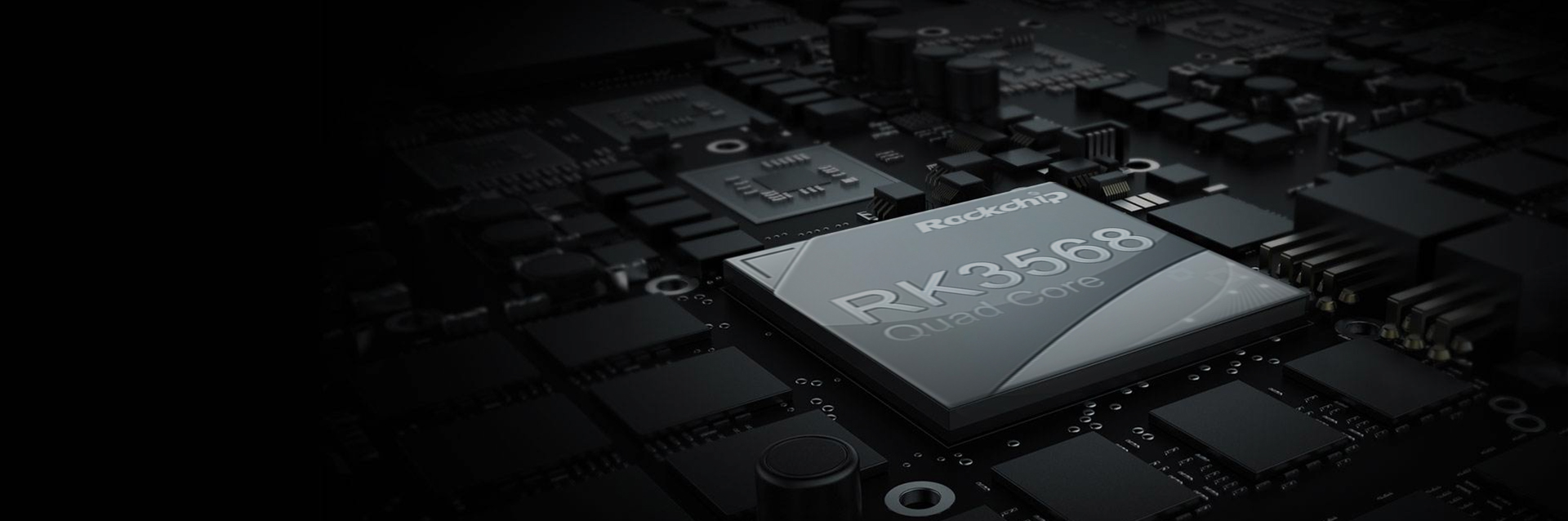

Chip: Rockchip RK3568

System: Support Android 11 OS

Function: Support 4K display, support 4G LTE

Interface: LVDS/EDP/MIPI/MIC/USB/SPK/POE/MIPI CSI, etc

High Performance Processor

Mali-G52-2EE, Embedded 3D GPU, support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1
DDR-2G(4G) EMMC-32G(32G)
4K@60fps H.264 AVC/MVC, H.265 HEVC/MVC, VP9, 1080P@60fps MPEG-4/-2/-1/VC-1,VP8

Rich Interface

Support Firmware/Startup Logo Customization

The system runs to Android 11 system, provides API document

Support the development of upper-layer application

4K Display

Support LVDS 1920X1080 resolution

Support MIPI 1200*1920 resolution

Support EDP 1920X1080 resolution(Optional)

Support 4G LTE

Support 1000M/100M/10M adaptive Ethernet

Support WIFI2.4GHz/5.0GHz

Support 4G LTE

Support dual-band WIFI6/BT5.0

Application scenarios

Digital signage

Self-service terminal

Smart tablet

Advertising machine

Digital Photo Frames

Cashier

YS-F3568 Parameters

CPU

Quad-core Cortex-A55

Main frequency up to 2.0GHz
GPU

Mali-G52-2EE, Embedded 3D GPU, support OpenGL OpenGL ES 1.1/2.0/3.2, OpenCL 2.0，Vulkan 1.1
CODEC

Support 4K@60fps H.264 AVC/MVC, H.265 HEVC/MVC, VP9 video decoding

Support 1080P@60fps MPEG-4/-2/-1/VC-1, VP8 video encoding
Display

Support LVDS, MIPI, EDP display
Peripheral interface

Support 1000M/100M/10M adaptive Ethernet

Support WIFI-2.4G/5G, BT-5.4

4G module interface

4*USB 2.0, 1*USB 3.0, 1*USB Type-C

3*TTL（1*RS232/TTL optional, 1*RS485/TTL optional, 1*Debug TTL）

1*I2C interface

4*GPIO port

1*LVDS interface, up to 1920X1080

1*MIPI interface, up to 1200*1920

1*EDP interface, up to 1920X1080(Optional)

1*Red light

1*Green light

Support speaker interface, up to one 8Ω 5W dual-channel speaker output

1* MIC interface

Customized service

FAQ

Production Capacity

500000PCS/Year
Technical Support

FAE 1 to 1 technical support
OEM/ODM

Firmware customization

Startup logo customization
Warranty Service

3 years warranty 7 days maintenance
Defect Rate 5‰

Guaranteed one-year defect rate

5‰ (after installation)
High-quality PCB

All PCB of the motherboard

Cooperate with listed board factory
