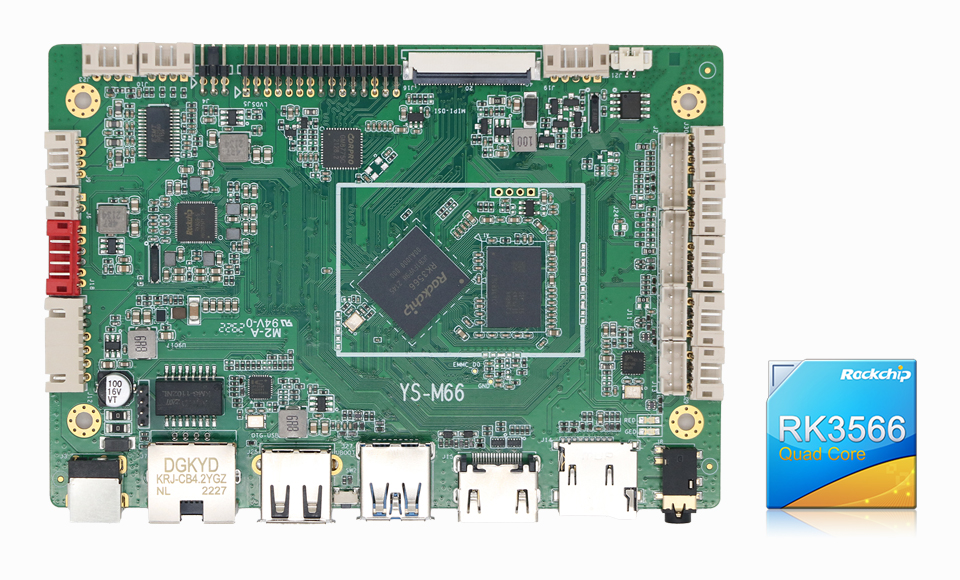

YS-M66 Rockchip RK3568 Rmbedded Android Dual-Screen Digital Signage Motherboards

Smart AIoT Motherboard

Chip: Rockchip RK3566

System: Support Android 11 OS

Function: Support 4K display, support 4G LTE

Interface: LVDS/MIPI/MIC/USB/SPK/POE/I2C, etc

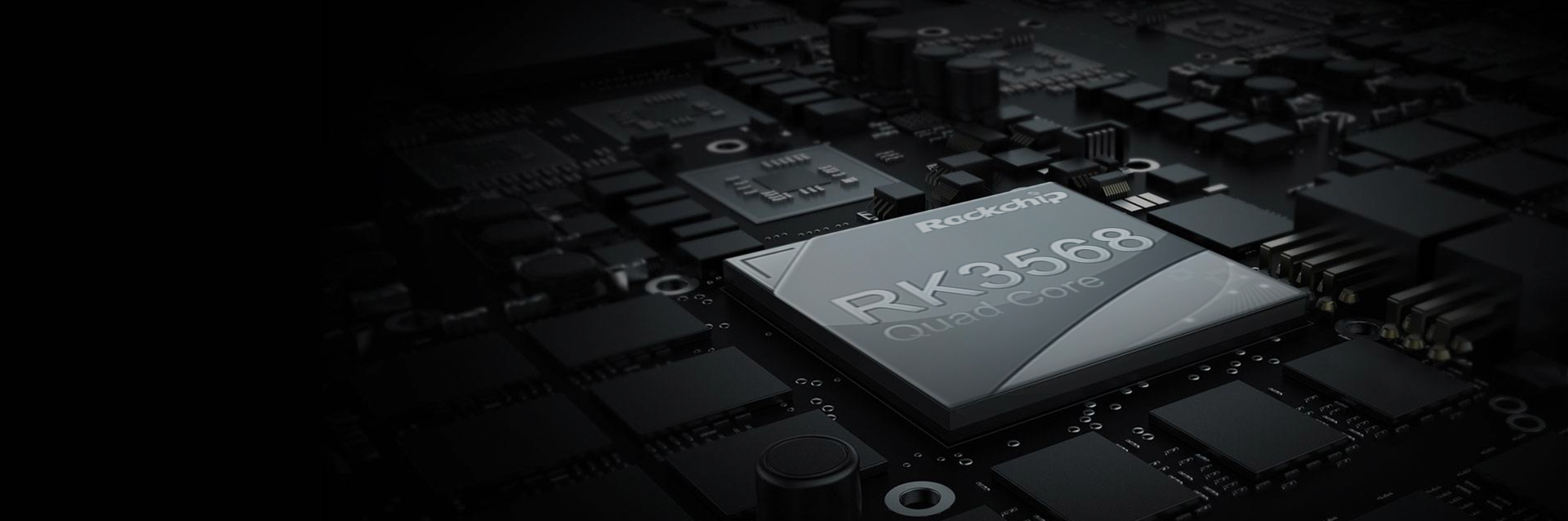

High Performance Processor

Rich Interface

Support Firmware/Startup Logo Customization

The operating system defaults to Android 11 system, provides API document

Support the development of upper-layer application

4K Display

Support LVDS 1920X1080 resolution

Support MIPI 1200*1920 resolution

Support USB camera

Support 4G LTE

Support 100M/10M adaptive Ethernet

Support WIFI2.4GHz/5.0Ghz

Support 4G LTE

Support dual-band WIFI6/BT5.4

Application scenarios

Digital signage

Self-service terminal

Smart tablet

Advertising machine

Digital Photo Frames

Cashier

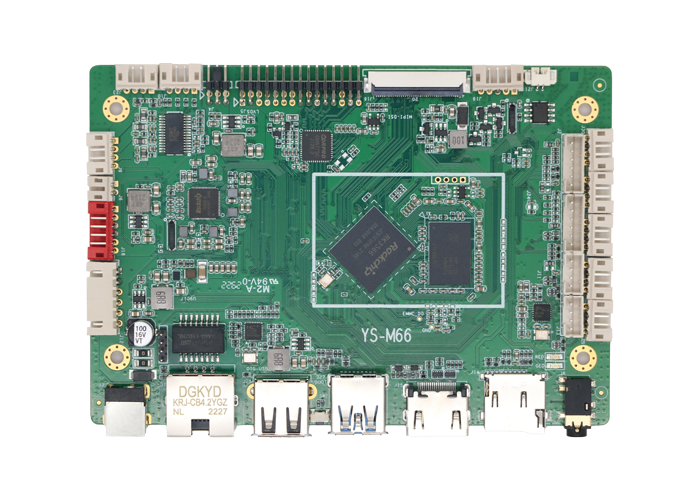

YS-M66 Parameters

CPU

Quad-core 64-bit Cortex-A55

Main frequency up to 1.8GHz
GPU

ARM G52 2EE, support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1
CODEC

Support 4K 60fps H.265/H.264/VP9 video decoding

Support 1080P 100fps H.265/H.264 video encoding
Display

Support LVDS, MIPI display
Peripheral interface

Support 100M/10M adaptive Ethernet

Support WIFI-2.4GHz/5GHz, BT-5.4

1*POE PWR(Optional)

4*USB 2.0, 1*USB 3.0, 1 USB OTG

2*TTL(1*TTTL/RS232 optional, 1*TTL)

1*I2C interface

4*GPIO port

1*LVDS interface, up to 1920X1080

1*MIPI interface, up to 1200*1920(Optional)

1*Remote control interface

1*Red light

1*Green light

1*Speaker interface, up to two 8Ω 5W dual-channel speaker output

1* MIC interface

Customized service

FAQ

Production Capacity

500000PCS/Year
Technical Support

FAE 1 to 1 technical support
OEM/ODM

Firmware customization

Startup logo customization
Warranty Service

3 years warranty 7 days maintenance
Defect Rate 5‰

Guaranteed one-year defect rate

5‰ (after installation)
High-quality PCB

All PCB of the motherboard

Cooperate with listed board factory
